179956-6 | AMP

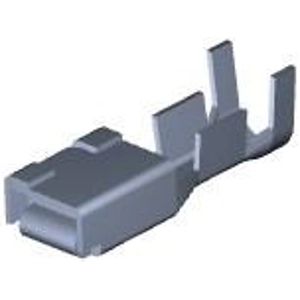

Receptacle, 3.08-5.5 mm², AWG 12-10, crimp connection, 179956-6
Unit Price (€ / pc.)
2.0111 € *
Standard delivery time from the manufacturer is: 15 Weeks
Socket contact, 179956-6, TE Connectivity
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Type: Receptacle, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 45 A, Wire Size: 12 - 10 AWG, Wire Size: 3.08 - 5.5 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12-10 | |
| Contact material | copper alloy | |
| Cable cross-section | 3.08-5.5 mm² | |
| Insulation diameter | 4-5.2 mm | |
| Contact surface mating area | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
