179956-2 | AMP

Receptacle, 3.08-5.5 mm², AWG 12-10, crimp connection, 179956-2

Order No.: 38P7353
EAN: 4099889651959
MPN:
179956-2
Series: DYNAMIC

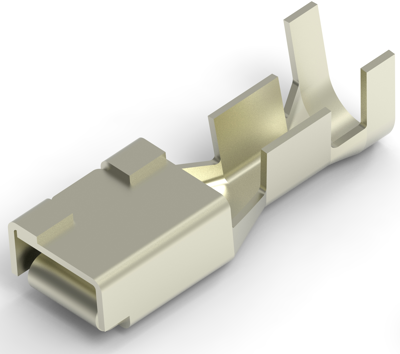

179956-2 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Available in 5 Days: 14,400 pcs.
Leadtime: 22 Weeks **
Total Price:
2,142.00 € *
Price list
Quantity
Price per unit*
1200 pcs.
1.7850 €
6000 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

Wire-to-board connector contact, 179956-2, AMP

Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 1 mm, Contact Type: Receptacle, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 30 A, Wire Size: 12 - 10 AWG, Wire Size: 3.08 - 5.5 mm², Operating Temperature Range: -55 - 105 °C.

Technical specifications
Contact surface mating area gold-plated
AWG cross-section AWG 12-10
Contact connection crimp connection
Cable cross-section 3.08-5.5 mm²
Version receptacle
Contact material copper alloy
Insulation diameter 4-5.2 mm
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
