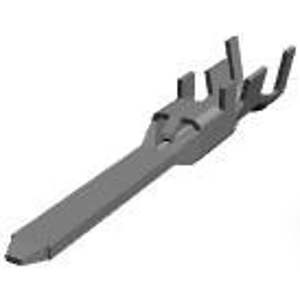

175286-2 | AMP
Pin contact, 0.5-1.42 mm², AWG 20-16, crimp connection, 175286-2
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Available in 5 Days: 75,000 pcs.
Leadtime: 22 Weeks **
Total Price:
1,642.20 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.5474 €
12000 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 175286-2, AMP
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 0.64 mm, Contact Type: Tab, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 15 A, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.42 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 1,8-2,8 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,5-1,42 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 3.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
