175285-5 | AMP

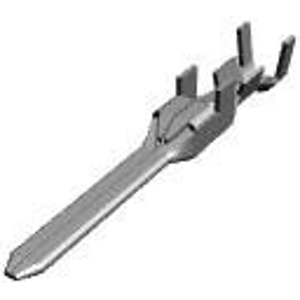

Pin contact, 0.2-0.6 mm², AWG 24-20, crimp connection, 175285-5
Unit Price (€ / pc.)
0.1476 € *
Standard delivery time from the manufacturer is: 31 Weeks
Wire-to-board connector contact, 175285-5, AMP
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 0.64 mm, Contact Type: Tab, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-20 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.2-0.6 mm² | |
| Insulation diameter | 1.2-2.6 mm | |
| Contact surface mating area | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
