175285-2 | AMP

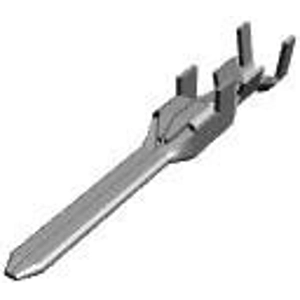

Pin contact, 0.2-0.6 mm², AWG 24-20, crimp connection, 175285-2
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Available in 5 Days: 392,000 pcs.
Leadtime: 14 Weeks **
Wire-to-board connector contact, 175285-2, AMP
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 0.64 mm, Contact Type: Tab, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 15 A, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1,2-2,6 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,2-0,6 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
