175154-1 | AMP

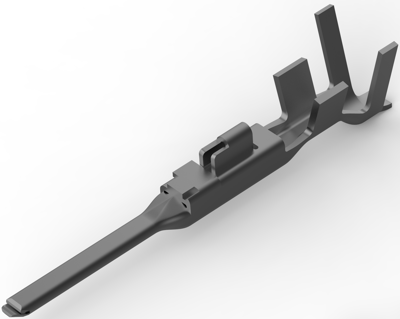

Pin contact, 0.5-1.42 mm², AWG 20-16, crimp connection, 175154-1
Unit Price (€ / pc.)
0.1083 € *
Available: 0 pcs.
Leadtime: 36 Weeks **
Total Price:
1,949.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
18000 pcs.
0.1083 €
Power contact, 175154-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 50 VAC, 300 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 12 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 1.2 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.42 mm², Accepts Wire Insulation Diameter Range: 1.7 - 3.3 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 1,7-3,3 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,5-1,42 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
