175153-1 | AMP

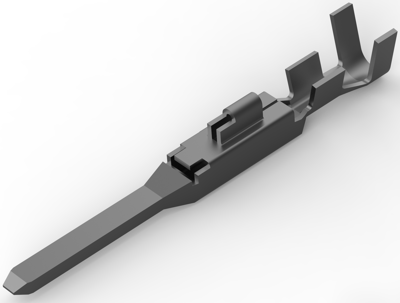

Pin contact, 0.12-0.35 mm², AWG 26-22, crimp connection, 175153-1
Unit Price (€ / pc.)
0.1523 € *
Standard delivery time from the manufacturer is: 36 Weeks
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1523 €
50 pcs.
0.1392 €
100 pcs.
0.1249 €
500 pcs.
0.1119 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 175153-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 50 VAC, 300 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 12 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 1.2 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.12 - 0.35 mm², Accepts Wire Insulation Diameter Range: 1.2 - 2 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 26-22 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.12-0.35 mm² | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Insulation diameter | 1.2-2 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
