175095-1 | AMP

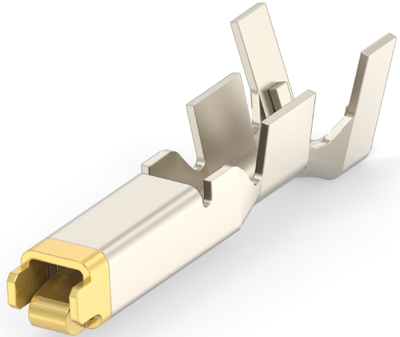

Receptacle, 0.5-1.25 mm², AWG 20-16, crimp connection, tin-plated, 175095-1
Unit Price (€ / pc.)
0.1547 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
618.80 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.1547 €
8000 pcs.
0.1464 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 175095-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1.25 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², Wire Size Search: 16 AWG, 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 1.2 - 1.9 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 20-16 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5-1.25 mm² | |
| Version | receptacle | |
| Contact material | brass | |
| Insulation diameter | 1.2-1.9 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
