173716-1 | AMP
Receptacle, 0.3-0.5 mm², AWG 22-20, crimp connection, tin-plated, 173716-1
Unit Price (€ / pc.)
0.0797 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 29 Weeks **

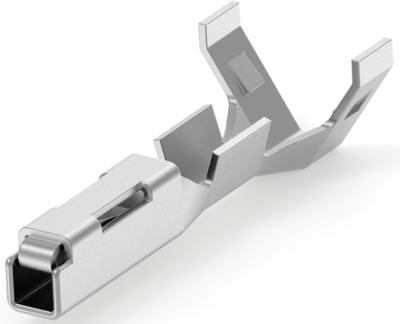

Socket contact, 173716-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 22 - 20 AWG, Wire Size: 0.3 - 0.5 mm², Wire Size Search: 0.3 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, Wire Insulation Diameter: 1.8 - 2 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1,8-2 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Zinn | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,3-0,5 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
