173630-6 | AMP
Receptacle, 0.3 mm², AWG 22, crimp connection, tin-plated, 173630-6
Unit Price (€ / pc.)
0.2261 € *
Available in 5 Days: 7,826 pcs. - if ordered today
Total Price:
22.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2261 €
250 pcs.
0.2083 €
500 pcs.
0.1940 €
1000 pcs.
0.1749 €
*incl. VAT plus shipping costs
Subject to prior sale

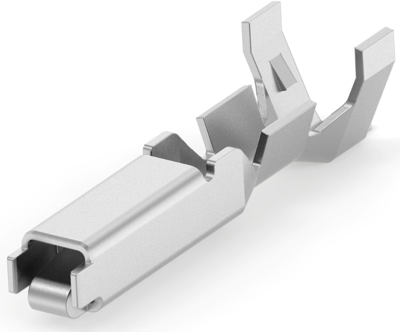

Socket contact, 173630-6, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.3 mm², Wire Size Search: 23 AWG, 24 AWG, Wire Size Search: 0.22 mm², 0.25 mm², 0.3 mm², Wire Insulation Diameter: 1.4 - 1.9 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.3 mm² | |
| Insulation diameter | 1.4-1.9 mm | |
| Contact material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
