1735801-1 | AMP
Receptacle, 0.02-0.05 mm², AWG 30-24, crimp connection, 1735801-1
Order No.: 36P9976
EAN: 4099889648317
MPN:
1735801-1
Unit Price (€ / pc.)
0.0088 € *
Available: 0 pcs.
Available in 5 Days: 190,000 pcs.
Leadtime: 1 Week **
Total Price:
0.01 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0088 €
50000 pcs.
0.0083 €
*incl. VAT plus shipping costs
**Subject to prior sale

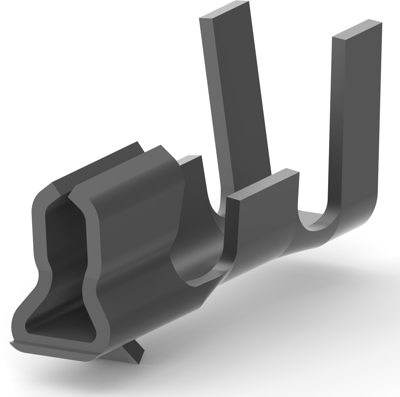

Socket contact, 1735801-1, TE Connectivity
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2 mm, Wire Size: 30 - 24 AWG, Wire Size: 0.05 -0.02 mm², Operating Temperature Range: -25 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 30-24 | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.02-0.05 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
