1734193-1 | AMP

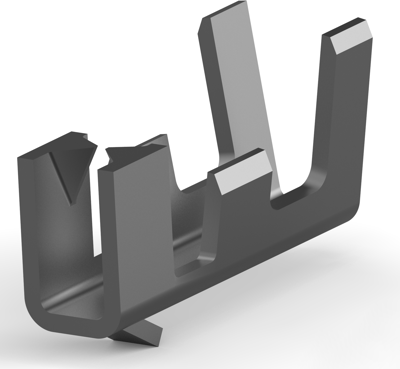

Receptacle, 0.03-0.08 mm², AWG 32-28, crimp connection, 1734193-1
Order No.: 37P1071
EAN: 4099889648348
MPN:
1734193-1
Unit Price (€ / pc.)
0.1047 € *
Available in 5 Days: 460,000 pcs. - if ordered today
Wire-to-board connector contact, 1734193-1, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Insulation Resistance: 100 MΩ, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): .8 A,1 A, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 1.25 mm, Wire Size: 32 - 28 AWG, Wire Size: 0.03 - 0.08 mm², Operating Temperature Range: -40 - 80 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 32-28 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.03-0.08 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
