171633-1 | AMP

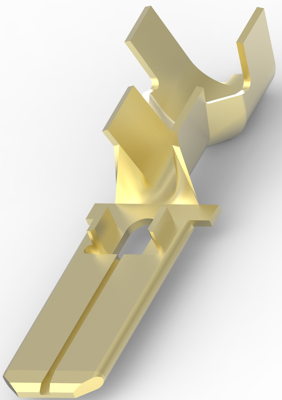

Tab, 1.25-3.37 mm², AWG 16-12, crimp connection, tin-plated, 171633-1
Unit Price (€ / pc.)
0.2106 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
21.06 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2106 €
250 pcs.
0.1940 €
500 pcs.
0.1809 €
1000 pcs.
0.1630 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat connector, 171633-1, TE Connectivity
Sealable: Yes, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 6.3 mm, Mating Tab Thickness: 0.8 mm, Termination Method: Crimp, Wire Size: 1.25 - 3.37 mm², Wire Size Search: 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², 3 mm², Wire Insulation Diameter: 4.1 - 5.5 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16-12 | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.25-3.37 mm² | |
| Insulation diameter | 4.1-5.5 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
