171631-1 | AMP

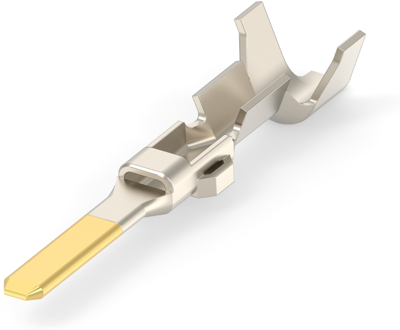

Tab, 0.2-0.5 mm², AWG 24-20, crimp connection, gold-plated, 171631-1
Unit Price (€ / pc.)
0.0417 € *
Standard delivery time from the manufacturer is: 29 Weeks
Contacts for motor vehicles, 171631-1, AMP
Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.2 - 0.5 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 1.5 - 2.2 mm, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| contact surface | gold-plated | |
| AWG cross-section | AWG 24-20 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.2-0.5 mm² | |
| Version | tab | |
| Contact material | brass | |
| Insulation diameter | 1.5-2.2 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
