170376-2 | AMP

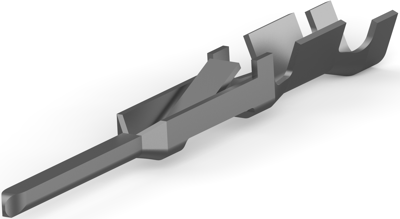

Pin contact, 0.12-0.5 mm², AWG 26-20, crimp connection, 170376-2
Order No.: 37P1180
EAN: 4099889648553
MPN:
170376-2
Unit Price (€ / pc.)
0.0452 € *
Available: 0 pcs.
Available in 5 Days: 330,000 pcs.
Leadtime: 6 Weeks **
Total Price:
678.30 € *
Price list
Quantity
Price per unit*
15000 pcs.
0.0452 €
30000 pcs.
0.0428 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 170376-2, TE Connectivity
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Insulation Resistance: 500 MΩ, Contact Base Material: Phosphor Bronze, Contact Type: Pin, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.09 - 1.91 mm, Wire Size: 26 - 20 AWG, Wire Size: 0.12 -0.5 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 26-20 | |
| Insulation diameter | 1,09-1,91 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,12-0,5 mm² |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
