170366-3 | AMP

Receptacle, 0.3-0.89 mm², AWG 22-18, crimp connection, gold-plated, 170366-3

Order No.: 71F863
EAN: 4099889662733
MPN:
170366-3
0-0170366-3

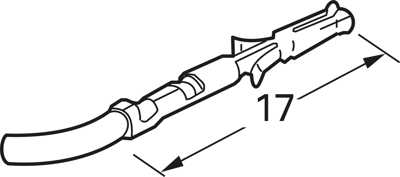

170366-3 AMP Crimp Contacts Image 1
170366-3 AMP Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available: 3,338 pcs.
Leadtime: On Request **
Total Price:
0.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.5712 €

Corresponding snap-in female crimp contact, type 0-017.

Made of CuZn special alloy, tinned.

Technical attributes (type, conductor cross-section): 0-0170366-3, 0.35 to 0.89 mm², gold-plated

Technical specifications
Version receptacle
Cable cross-section 0.3-0.89 mm²
AWG cross-section AWG 22-18
Contact connection crimp connection
Contact material brass
Contact surface mating area gold-plated
contact surface gold-plated
Contact surface Connection range gold-plated
Insulation diameter 1.5-3.4 mm
Logistics
Country of origin JP
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
