170365-1 | AMP

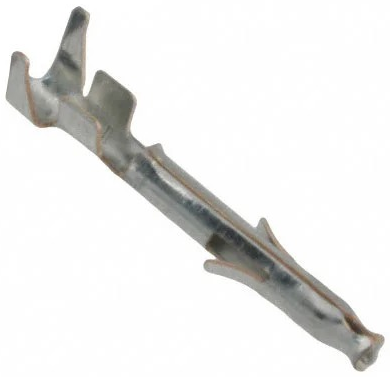

Receptacle, 0.12-0.35 mm², AWG 26-22, crimp connection, tin-plated, 170365-1
Unit Price (€ / pc.)
0.2856 € *
Available: 4,920 pcs.
Next delivery: 7,200 pcs. on 2025-07-16
Available in 5 Days: 16,500 pcs. - if ordered today
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2856 €
50 pcs.
0.2559 €
200 pcs.
0.2261 €
500 pcs.
0.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding snap-in female crimp contact, type 0-017.
Made of CuZn special alloy, tinned.
Technical attributes (type, conductor cross-section): 0-0170365-1, 0.12 to 0.35 mm², tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.12-0.35 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 1.19-1.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
