170363-1 | AMP

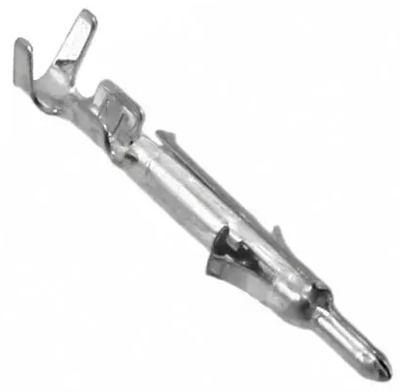

Pin contact, 0.12-0.35 mm², AWG 26-22, crimp connection, tin-plated, 170363-1
Unit Price (€ / pc.)
0.3570 € *
Available: 7,096 pcs.
Available in 5 Days: 326,897 pcs. - if ordered today
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.2796 €
50 pcs.
0.1333 €
100 pcs.
0.1214 €
500 pcs.
0.1071 €
*incl. VAT plus shipping costs
Subject to prior sale
Snap-in male crimp contact, type 0-017.
Made of CuZn special alloy, tinned.
Technical attributes (type, conductor cross-section): 0-0170363-1, 0.12 to 0.35 mm², tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.12-0.35 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 1.19-1.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
