170360-1 | AMP

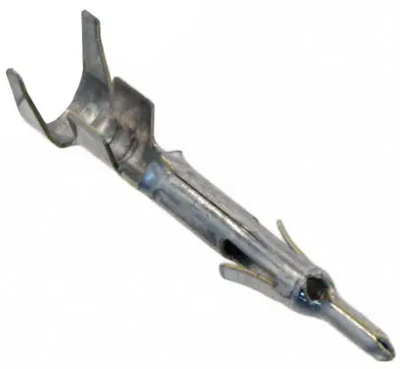

Pin contact, 0.3-0.89 mm², AWG 22-18, crimp connection, tin-plated, 170360-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0964 € *
Available: 40 pcs.
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0964 €
100 pcs.
0.0881 €
500 pcs.
0.0833 €
1000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 170360-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.89 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.4 mm,3.4 mm, Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.3-0.89 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 1.5-2.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
