170355-1 | AMP

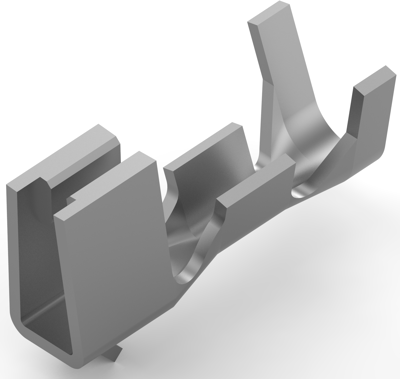

Receptacle, 0.05-0.15 mm², AWG 30-26, crimp connection, 170355-1
Order No.: 37P1165
EAN: 4099889648447
MPN:
170355-1
Unit Price (€ / pc.)
0.0250 € *
Standard delivery time from the manufacturer is: 9 Weeks
Socket contact, 170355-1, AMP
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Insulation Resistance: 500 MΩ, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1 - 1.5 mm, Wire Size: 30 - 26 AWG, Wire Size: 0.05 - 0.15 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-26 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.05-0.15 mm² | |
| Insulation diameter | 1-1.5 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
