170311-1 | AMP

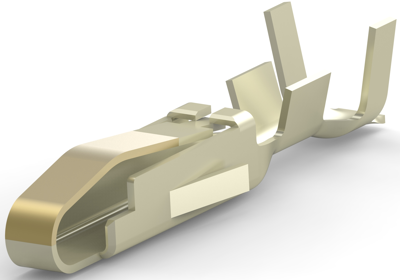

Pin contact, 0.22-0.3 mm², AWG 24-22, crimp connection, 170311-1
Order No.: 36P9129
EAN: 4099889648225
MPN:
170311-1
Unit Price (€ / pc.)
0.6188 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Pin contact, 170311-1, TE Connectivity
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 30 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Hermaphroditic, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 7 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 11 mm, Accepts Wire Insulation Diameter Range: 1.5 - 1.95 mm, Wire Size: 24 - 22 AWG, Wire Size: 434.18 - 592.06 CMA, Wire Size: 0.22 -0.3 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-22 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.22-0.3 mm² | |
| Insulation diameter | 1.5-1.95 mm | |
| Contact surface mating area | gold-plated | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
