1703034-2 | AMP

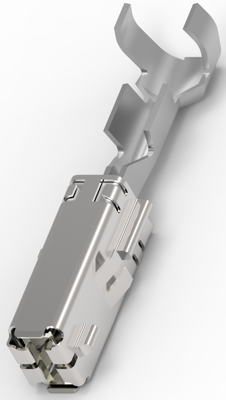

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, gold-plated, 1703034-2
Order No.: 35P8995
EAN: 4099889639995
MPN:
1703034-2
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 1703034-2, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.4 - 2.1 mm, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-17 | |
| Insulation diameter | 1.4-2.1 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
