170205-2 | AMP

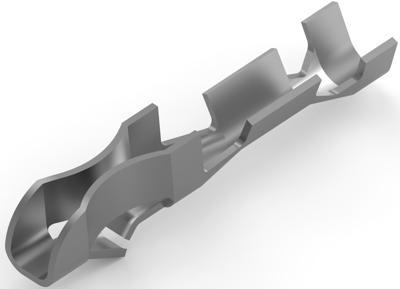

Receptacle, 0.05-0.15 mm², AWG 30-26, crimp connection, 170205-2
Order No.: 37P1161
EAN: 4099889648409
MPN:
170205-2
Unit Price (€ / pc.)
0.0583 € *
Available in 5 Days: 41,000 pcs. - if ordered today
Wire-to-board connector contact, 170205-2, AMP
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1 - 1.4 mm, Wire Size: 30 - 26 AWG, Wire Size: 0.05 - 0.15 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-26 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.05-0.15 mm² | |
| Insulation diameter | 1-1.4 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
