170204-4 | AMP

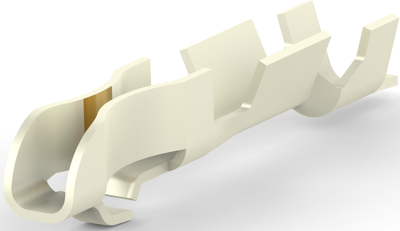

Receptacle, 0.12-0.5 mm², AWG 26-20, crimp connection, 170204-4
Order No.: 37P1158
EAN: 4099889648379
MPN:
170204-4
Unit Price (€ / pc.)
0.1975 € *
Available in 5 Days: 117,149 pcs. - if ordered today
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1975 €
50 pcs.
0.1833 €
100 pcs.
0.1702 €
250 pcs.
0.1547 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-to-board connector contact, 170204-4, AMP
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 2 A, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.09 - 1.91 mm, Wire Size: 26 - 20 AWG, Wire Size: 0.12 - 0.5 mm², Operating Temperature Range: -20 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-20 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.12-0.5 mm² | |
| Insulation diameter | 1.09-1.91 mm | |
| Contact surface mating area | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
