170147-1 | AMP

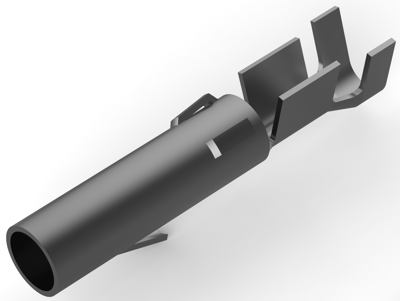

Receptacle, 0.2-0.82 mm², AWG 24-18, crimp connection, 170147-1
Unit Price (€ / pc.)
0.1047 € *
Available in 5 Days: 105,000 pcs. - if ordered today
Total Price:
733.04 € *
Price list
Quantity
Price per unit*
7000 pcs.
0.1047 €
14000 pcs.
0.1035 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 170147-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 13 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.1 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.82 mm², Accepts Wire Insulation Diameter Range: 2.54 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.2-0.82 mm² | |
| Version | receptacle | |
| AWG cross-section | AWG 24-18 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Insulation diameter | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
