170021-2 | AMP

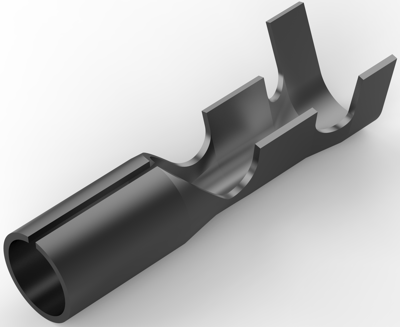

Receptacle, 0.5-2.27 mm², AWG 20-14, crimp connection, tin-plated, 170021-2
Order No.: 35P2562
EAN: 4099889636987
MPN:
170021-2
Unit Price (€ / pc.)
0.1975 € *
Available in 5 Days: 30,931 pcs. - if ordered today
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1975 €
50 pcs.
0.1833 €
100 pcs.
0.1702 €
250 pcs.
0.1547 €
*incl. VAT plus shipping costs
Subject to prior sale
Crimp wire pins, tabs and ferrules, 170021-2, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4.7 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.1 mm, Accepts Wire Insulation Diameter Range: 2.2 - 3.1 mm, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2.27 mm², Wire Size: 1021 - 4106 CMA Heavy Duty: No, Crimp Wire Pin, Tab & Ferrule Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-14 | |
| Contact material | brass | |
| Cable cross-section | 0.5-2.27 mm² | |
| Insulation diameter | 2.2-3.1 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
