170003-4 | AMP

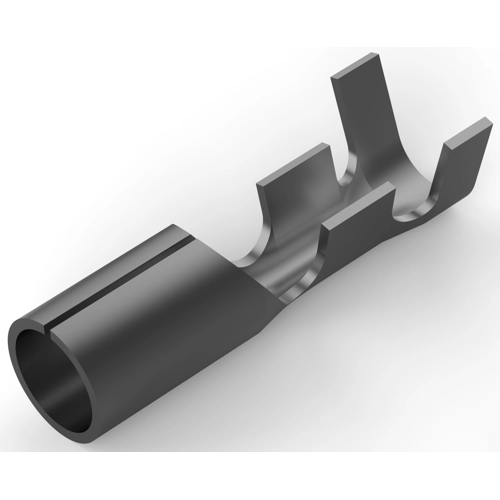

Pin contact, 0.5-2.27 mm², AWG 20-14, crimp connection, tin-plated, 170003-4
Order No.: 35P2587
EAN: 4099889636994
MPN:
170003-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1583 € *
Available in 12 Days: 21,000 pcs. - if ordered today
Crimp wire pins, tabs and ferrules, 170003-4, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Support Style: Insulation Support, Crimp Wire Pin, Tab & Ferrule Plating Material: Post-Tin,Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.6 mm, Accepts Wire Insulation Diameter Range: 2.5 - 3.6 mm, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2.27 mm², Wire Size: 1021 - 4106 CMA Heavy Duty: No, Packaging Quantity: 7000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Strip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.5-2.27 mm² | |
| AWG cross-section | AWG 20-14 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Insulation diameter | 2.5-3.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
