167024-2 | AMP
Receptacle, 0.03-0.09 mm², AWG 32-28, crimp connection, 167024-2
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Available in 5 Days: 12,564 pcs.
Leadtime: 13 Weeks **
Total Price:
229.08 € *
Price list
Quantity
Price per unit*
250 pcs.
0.9163 €
2000 pcs.
0.8687 €
*incl. VAT plus shipping costs
**Subject to prior sale

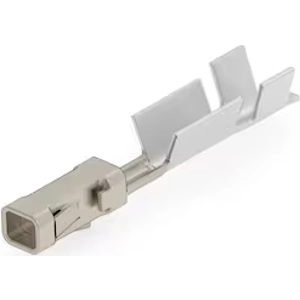

Socket contact, 167024-2, AMP
Applied Pressure: Intermediate, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.2 mm, Wire Size: 32 - 28 AWG, Wire Size: 59.2 - 177.62 CMA, Wire Size: 0.03 - 0.09 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 32-28 | |
| Insulation diameter | 1,2 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,03-0,09 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
