167023-2 | AMP

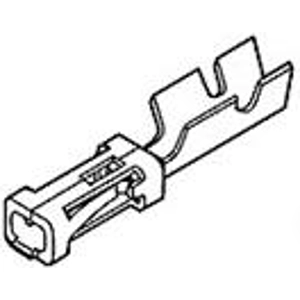

Receptacle, 0.03-0.09 mm², AWG 32-28, crimp connection, 167023-2
Order No.: 37P6643
EAN: 4099889650273
MPN:
167023-2
Unit Price (€ / pc.)
0.2463 € *
Standard delivery time from the manufacturer is: 41 Weeks
Wire-to-board connector contact, 167023-2, AMP
Applied Pressure: Standard, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.2 mm, Wire Size: 32 - 28 AWG, Wire Size: 59.2 - 177.62 CMA, Wire Size: 0.03 - 0.09 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 32-28 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.03-0.09 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 1.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
