1658670-4 | AMP

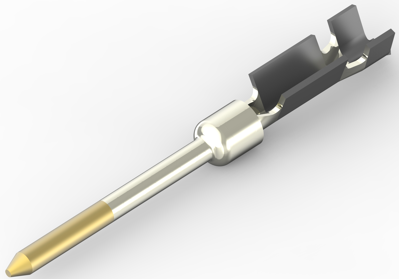

Pin contact, 0.08-0.4 mm², AWG 28-22, crimp connection, gold-plated, 1658670-4
Unit Price (€ / pc.)
0.1559 € *
Available in 5 Days: 51,033 pcs. - if ordered today
Total Price:
15.59 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1559 €
250 pcs.
0.1440 €
500 pcs.
0.1345 €
1000 pcs.
0.1214 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 1658670-4, TE Connectivity
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 22, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.76 - 1.02 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.08 -0.4 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.08-0.4 mm² | |
| AWG cross-section | AWG 28-22 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | nickel-plated | |
| Insulation diameter | 0.76-1.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
