1658540-5 | AMP

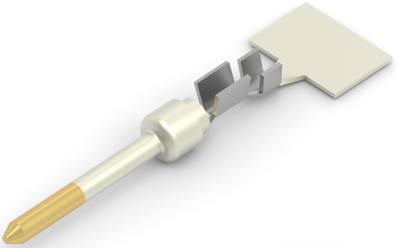

Pin contact, 0.08-0.2 mm², AWG 28-24, crimp connection, 1658540-5
Unit Price (€ / pc.)
0.8330 € *
Available in 5 Days: 4,017 pcs. - if ordered today
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector contact, 1658540-5, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.76 - 1.02 mm, Wire Size: 28 - 24 AWG, Wire Size: 0.08 - 0.2 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 28-24 | |
| Contact surface Connection range | nickel-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.08-0.2 mm² | |
| Version | pin contact | |
| Contact material | brass | |
| Insulation diameter | 0.76-1.02 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
