1658539-2 | AMP
Pin contact, 0.2-0.6 mm², AWG 24-20, crimp connection, gold-plated, 1658539-2
Unit Price (€ / pc.)
0.0916 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 11 Weeks **
Total Price:
916.30 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0916 €
20000 pcs.
0.0857 €
*incl. VAT plus shipping costs
**Subject to prior sale

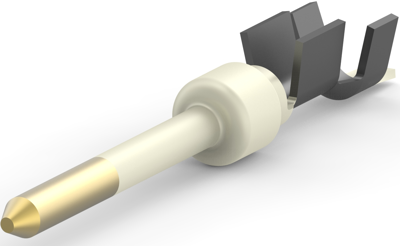

Pin contact, 1658539-2, TE Connectivity
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Yes, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 0.2 -0.6 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 0,2-0,6 mm² | |
| AWG cross-section | AWG 24-20 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Contact surface Connection range | vernickelt | |
| Insulation diameter | 1,27-1,52 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
