163303-6 | AMP

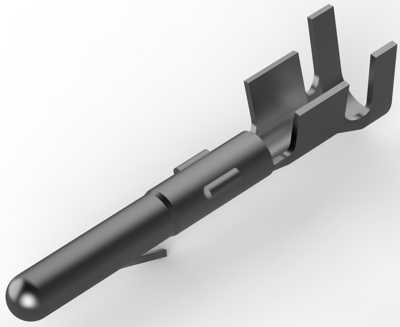

Pin contact, 1.0-2.5 mm², AWG 17-13, crimp connection, 163303-6
Unit Price (€ / pc.)
0.2071 € *
Available in 5 Days: 7,000 pcs. - if ordered today
Total Price:
2.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2071 €
50 pcs.
0.1916 €
100 pcs.
0.1785 €
250 pcs.
0.1618 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 163303-6, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Pre-Tin, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.1 mm, Contact Base Material: Brass, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Accepts Wire Insulation Diameter Range: 2.5 - 3.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-13 | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Cable cross-section | 1.0-2.5 mm² | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 2.5-3.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
