163301-6 | AMP

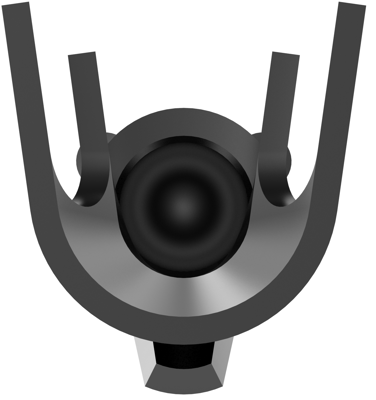

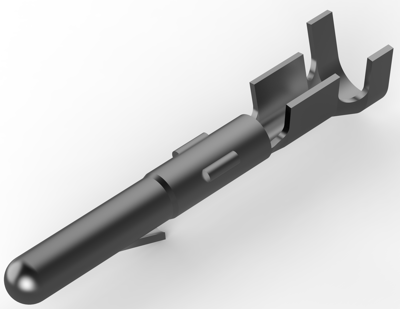

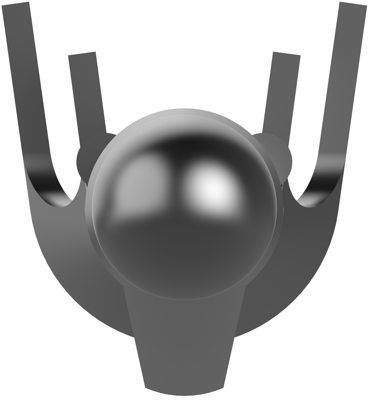

Pin contact, 0.5-1.0 mm², AWG 20-17, crimp connection, 163301-6
Unit Price (€ / pc.)
0.1785 € *
Available in 5 Days: 13,500 pcs. - if ordered today
Total Price:
803.25 € *
Price list
Quantity
Price per unit*
4500 pcs.
0.1785 €
9000 pcs.
0.1690 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 163301-6, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Pre-Tin, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.1 mm, Contact Base Material: Brass, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Accepts Wire Insulation Diameter Range: 1.8 - 3.3 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact surface Connection range | tin-plated | |
| Contact material | brass | |
| Insulation diameter | 1.8-3.3 mm | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
