163300-8 | AMP

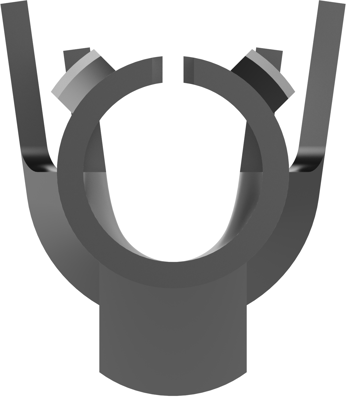

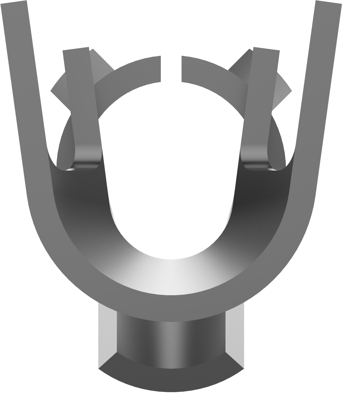

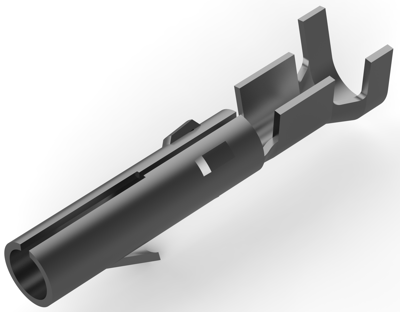

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, 163300-8
Unit Price (€ / pc.)
0.4284 € *
Available: 3,988 pcs.
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
100 pcs.
0.3689 €
250 pcs.
0.3332 €
500 pcs.
0.2689 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 163300-8, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Pre-Tin, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.1 mm, Contact Base Material: Phosphor Bronze, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Accepts Wire Insulation Diameter Range: 1.8 - 3.3 mm.
Technical specifications
| Contact surface mating area | tin-plated | |
| Contact connection | crimp connection | |
| AWG cross-section | AWG 20-17 | |
| Contact material | phosphor bronze | |
| Version | receptacle | |
| Insulation diameter | 1.8-3.3 mm | |
| Cable cross-section | 0.5-1.0 mm² | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | NL |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
