163092-2 | AMP
Receptacle, 0.12-0.2 mm², AWG 26-24, crimp connection, gold-plated, 163092-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.9028 € *
Available: 296 pcs.
Available in 5 Days: 9,698 pcs. - if ordered today
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.5458 €
25 pcs.
4.2483 €
50 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale

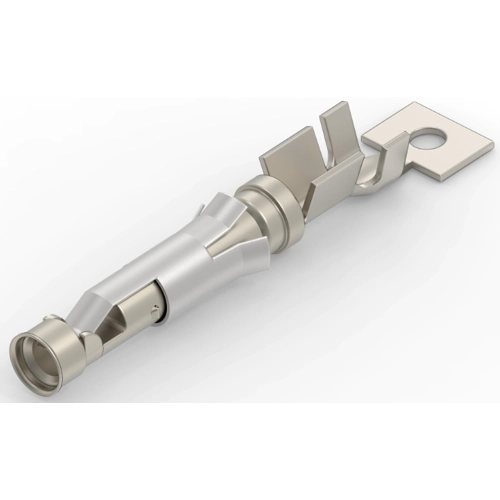

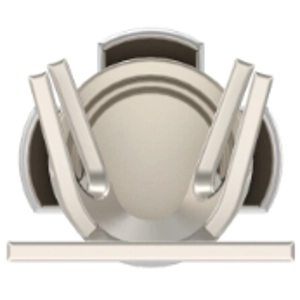

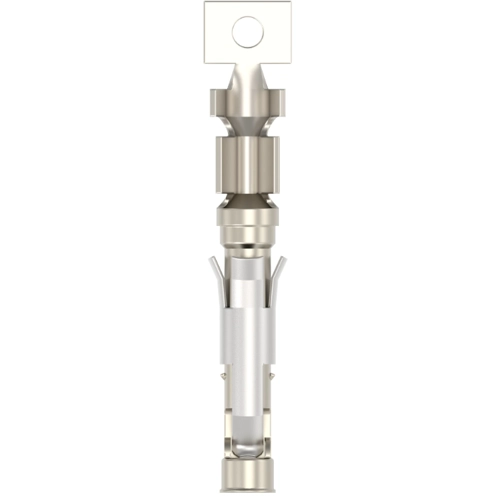

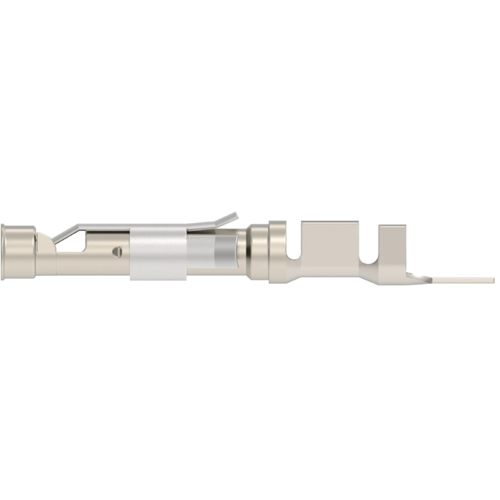

Corresponding snap-in crimp contact, female, type TE Connectivity/AMP IIIplus.
Contact material: copper alloy, gold-plated. Assembly with appropriate crimp tool.
Technical attributes (type, conductor cross-sections, tinned or gold-plated finish): 0 - 0163092 - 2, 0.12 to 0.25 mm², gold - plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.12-0.2 mm² | |
| AWG cross-section | AWG 26-24 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 0.89-1.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
