163083-2 | AMP
Receptacle, 0.75-1.5 mm², AWG 18-16, crimp connection, 163083-2
Unit Price (€ / pc.)
1.4994 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Total Price:
22,491.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
1.4994 €

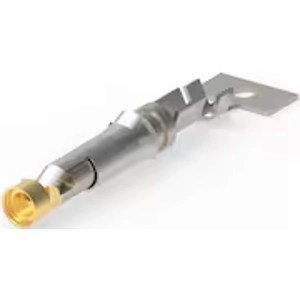

Power contact, 163083-2, TE Connectivity
Power contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 13 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 18 - 16 AWG, Wire Size: 0.75 - 1.5 mm², Accepts Wire Insulation Diameter Range: 2 - 2.5 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 18-16 | |
| Contact surface Connection range | gold-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.75-1.5 mm² | |
| Version | receptacle | |
| Contact material | brass | |
| Insulation diameter | 2-2.5 mm |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
