160809-2 | AMP
160809-2
Order No.: 34P9084
MPN:
160809-2
Unit Price (€ / pc.)
0.1273 € *
Standard delivery time from the manufacturer is: 37 Weeks

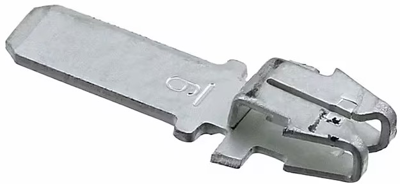

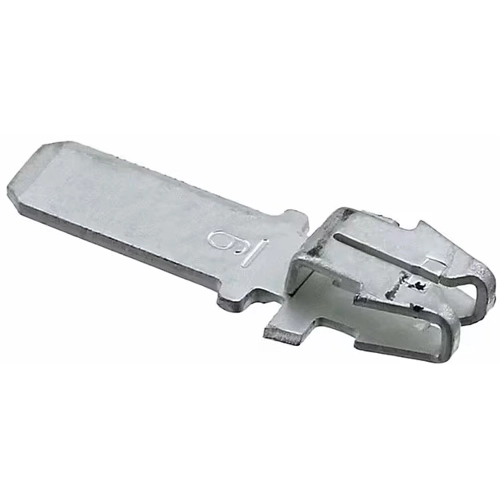

Magnet wire terminal, 160809-2, AMP
The MAG-MATE 187 is a terminal for magnet wire with a solder post and a mating tab width of 2.8 mm. It is designed for use with size 1 magnet wire, which has a diameter range of 0.36 - 0.45 mm. This terminal is compatible with 27 - 25 AWG magnet wire.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 27-25 | |
| Cable cross-section | 0.10-0.16 mm² | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
