1604038-1 | AMP

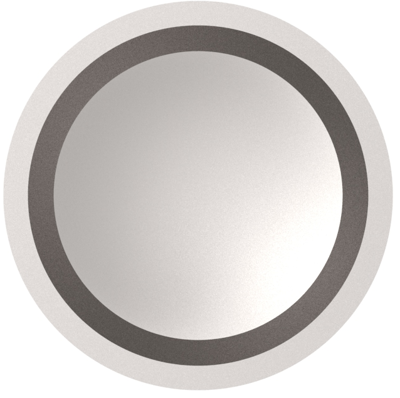

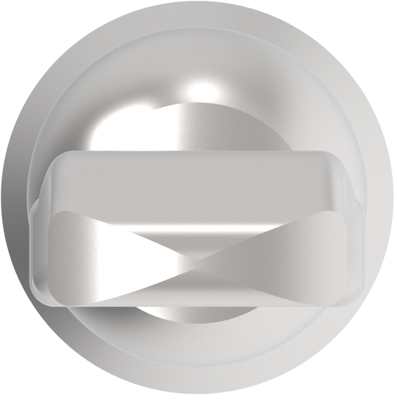

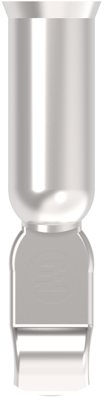

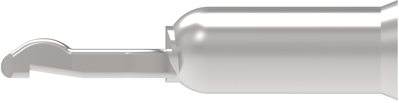

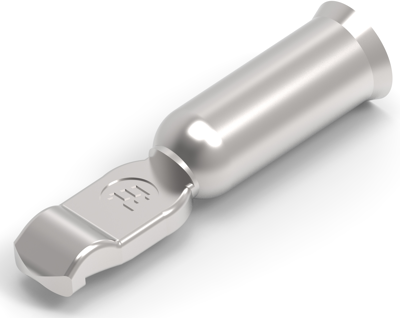

Tab, 21-60 mm², crimp connection, silver-plated, 1604038-1
Unit Price (€ / pc.)
10.3649 € *
Available in 5 Days: 840 pcs. - if ordered today
Total Price:
10.36 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3649 €
5 pcs.
9.8294 €
10 pcs.
9.1987 €
25 pcs.
8.3776 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 1604038-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 180 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 12.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 1 - 0 AWG, Wire Size: 21 - 60 mm², Wire Size: 41444 - 118412 CMA, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper alloy | |
| Cable cross-section | 21-60 mm² | |
| Contact surface mating area | silver-plated | |
| contact surface | silver-plated | |
| Version | tab | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
