1470106-1 | AMP

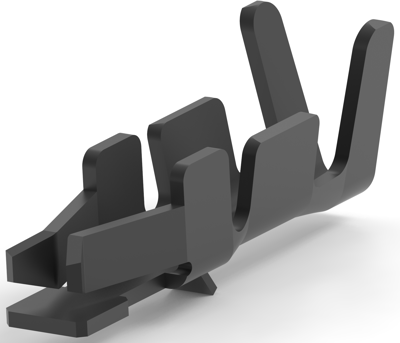

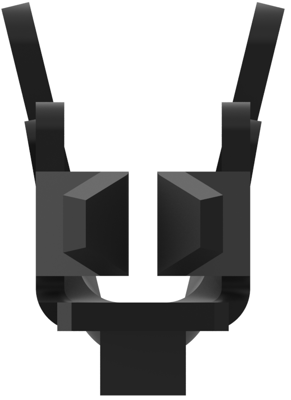

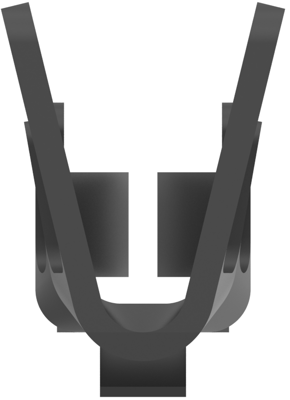

Receptacle, 0.079-0.38 mm², AWG 28-22, crimp connection, tin-plated, 1470106-1
Order No.: 36P9974
EAN: 4099889648300
MPN:
1470106-1
Unit Price (€ / pc.)
0.0381 € *
Available in 5 Days: 30,000 pcs. - if ordered today
Wire-to-board connector contact, 1470106-1, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 100 VDC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.079 - 0.38 mm², Operating Temperature Range: -25 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-22 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.079-0.38 mm² | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
