1445995-1 | AMP
Tab, 34-35 mm², AWG 2, crimp connection, silver-plated, 1445995-1
Unit Price (€ / pc.)
5.8786 € *
Available in 5 Days: 1,208 pcs. - if ordered today
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4621 €
25 pcs.
5.0932 €
50 pcs.
4.6291 €
*incl. VAT plus shipping costs
Subject to prior sale

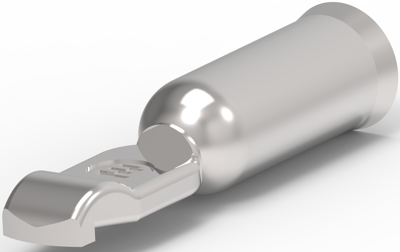

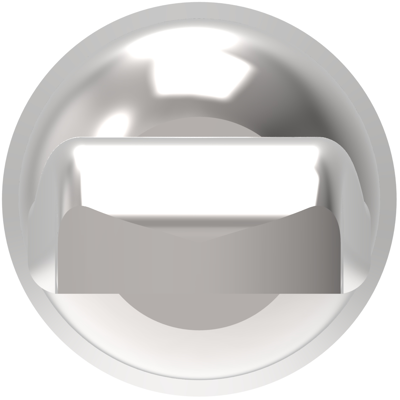

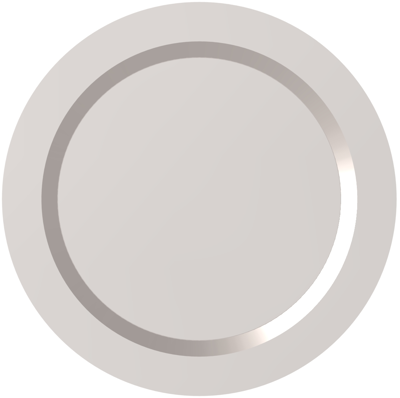

Power contact, 1445995-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 120 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 10.6 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 2 AWG, Wire Size: 34 - 35 mm², Wire Size: 67100 - 69073 CMA, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 2 | |
| Contact material | copper alloy | |
| Cable cross-section | 34-35 mm² | |
| Contact surface mating area | silver-plated | |
| contact surface | silver-plated | |
| Version | tab | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
