144433-1 | AMP

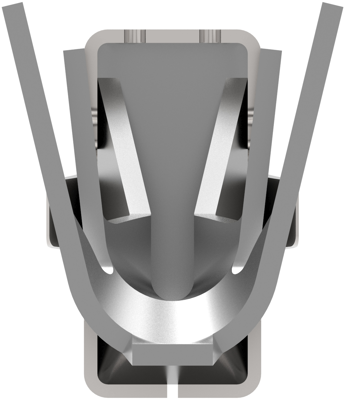

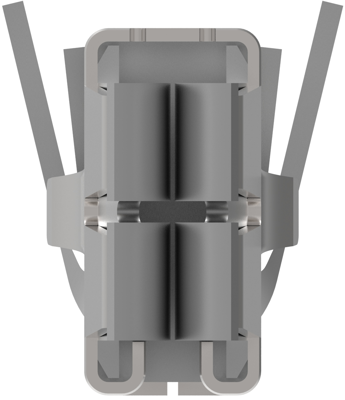

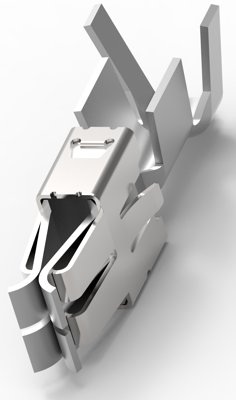

Receptacle, 3.0-5.0 mm², AWG 12-10, crimp connection, tin-plated, 144433-1
Order No.: 36P3561
EAN: 4099889646016
MPN:
144433-1
Unit Price (€ / pc.)
0.2273 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Socket contact, 144433-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm, 6.3 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 3 - 5 mm², Wire Size Search: 11 AWG, 12 AWG, Wire Size Search: 3 mm², 4 mm², 5 mm², Wire Insulation Diameter: 4 mm, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 3.0-5.0 mm² | |
| AWG cross-section | AWG 12-10 | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
