141603-4 | AMP

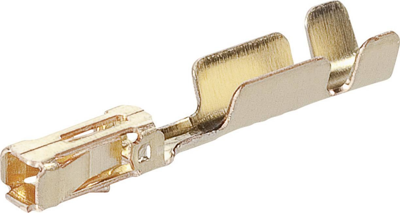

Receptacle, 0.13-0.57 mm², AWG 26-20, crimp connection, gold-plated, 141603-4
Unit Price (€ / pc.)
0.4284 € *
Available: 357 pcs.
Available in 5 Days: 1,100 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 141603-4, TE Connectivity
Applied Pressure: Standard, Connector System: Board-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.4 mm, Wire Size: 26 AWG, Wire Size: 276.23 - 236.82 CMA, Wire Size: 0.14 -0.12 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 26-20 | |
| contact surface | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.13-0.57 mm² | |
| Insulation diameter | 1.4 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
