140712-2 | AMP

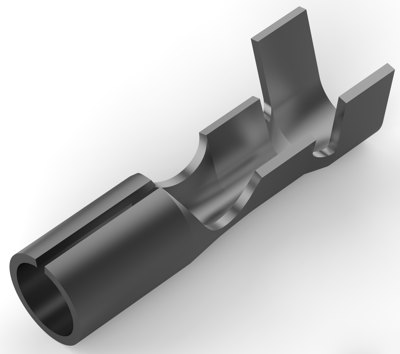

Receptacle, 0.8-2.0 mm², AWG 18-14, crimp connection, tin-plated, 140712-2
Order No.: 35P2539
EAN: 4099889636949
MPN:
140712-2
Unit Price (€ / pc.)
0.0940 € *
Available in 5 Days: 30,000 pcs. - if ordered today
Wire end ferrule, 140712-2, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Support Style: Insulation Support, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal & Splice Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Terminal Type: Receptacle, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.96 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 4.5 mm, Accepts Wire Insulation Diameter Range: 3.3 - 4.5 mm, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Wire Size: 1624 - 4106 CMA, Heavy Duty: No.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-14 | |
| Contact material | brass | |
| Cable cross-section | 0.8-2.0 mm² | |
| Insulation diameter | 3.3-4.5 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
