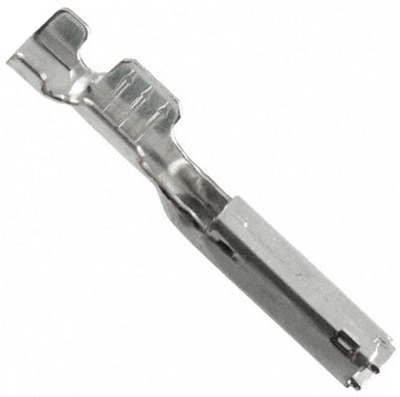

1393366-1 | AMP
Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, tin-plated, 1393366-1
Order No.: 35P9521
EAN: 4099889640908
MPN:
1393366-1
Unit Price (€ / pc.)
0.0940 € *
Available: 370 pcs.
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0940 €
250 pcs.
0.0869 €
500 pcs.
0.0809 €
1000 pcs.
0.0726 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 1393366-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.5 -0.75 mm², Wire Size Search: 18 AWG, 19 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Insulation Diameter: 1.6 - 1.9 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.5-0.75 mm² | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 1.6-1.9 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Contact connection | crimp connection | |
| AWG cross-section | AWG 20-18 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 10,000 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
