1393365-2 | AMP

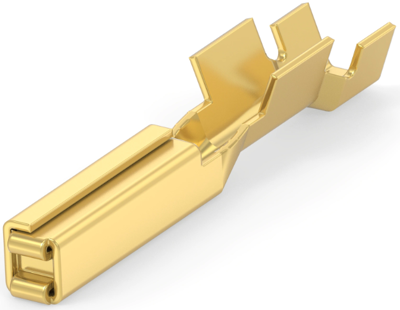

Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, tin-plated, 1393365-2
Order No.: 35P9522
EAN: 4099889640915
MPN:
1393365-2
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 29 Weeks
Contacts for motor vehicles, 1393365-2, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 18 AWG, 19 AWG, Wire Insulation Diameter: 1.6 - 1.9 mm, 130 °C, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 20-18 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5-0.75 mm² | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 1.6-1.9 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
