1376476-1 | AMP

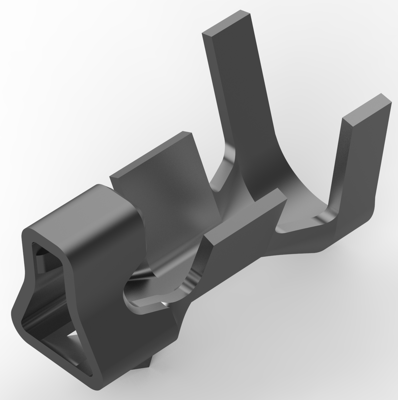

Receptacle, 0.12-0.38 mm², AWG 24-22, crimp connection, tin-plated, 1376476-1
Order No.: 35P4361
EAN: 4099889637458
MPN:
1376476-1
Unit Price (€ / pc.)
0.0536 € *
Available in 5 Days: 30,490 pcs. - if ordered today
Total Price:
428.40 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.0536 €
24000 pcs.
0.0524 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-to-board connector contact, 1376476-1, AMP
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 50 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2.5 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.2 - 1.9 mm, Wire Size: 24 - 22 AWG, Wire Size: 0.12 - 0.38 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-22 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.12-0.38 mm² | |
| Insulation diameter | 1.2-1.9 mm | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
