1375819-1 | AMP
Receptacle, 0.13-0.35 mm², AWG 26-22, crimp connection, tin-plated, 1375819-1
Unit Price (€ / pc.)
0.0452 € *
Available: 51,550 pcs.
Available in 5 Days: 16,500 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0452 €
250 pcs.
0.0417 €
500 pcs.
0.0393 €
1000 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale

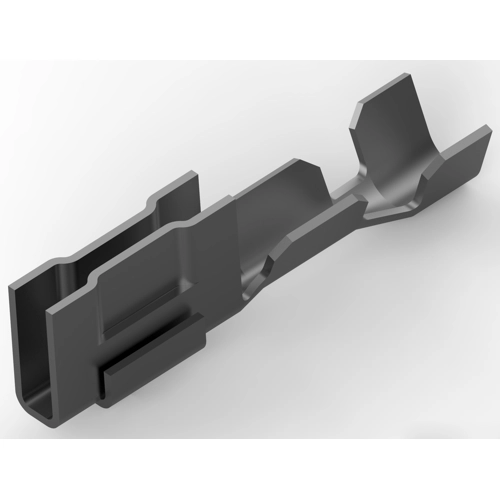

Socket contact, 1375819-1, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 4 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 0.89 - 1.65 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.13 - 0.33 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Contact connection | crimp connection | |
| Insulation diameter | 0.89-1.65 mm | |
| AWG cross-section | AWG 26-22 | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.13-0.35 mm² | |
| contact surface | tin-plated | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,500 pieces |
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
