1318107-1 | AMP
Receptacle, 0.34-0.86 mm², AWG 22-18, crimp connection, gold-plated, 1318107-1
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Available in 5 Days: 18,133 pcs.
Leadtime: 14 Weeks **
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3808 €
50 pcs.
0.3332 €
100 pcs.
0.2820 €
*incl. VAT plus shipping costs
**Subject to prior sale

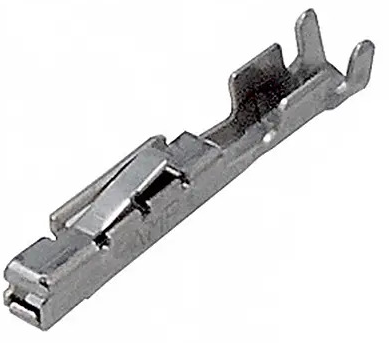

Socket contact, 1318107-1, TE Connectivity
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Type: Receptacle, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 5 A, Wire Size: 22 - 18 AWG, Wire Size: 0.34 -0.86 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1,26-1,9 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Cable cross-section | 0,34-0,86 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
