1241844-2 | AMP
Receptacle, 1.5 mm², AWG 15, crimp connection, tin-plated, 1241844-2
Order No.: 36P3300
EAN: 4099889644210
MPN:
1241844-2
0-1241844-2
Unit Price (€ / pc.)
0.1488 € *
Standard delivery time from the manufacturer is: 39 Weeks

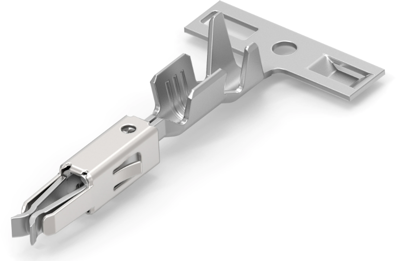

Socket contact, 1241844-2, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 15 AWG, Wire Size: 1.5 mm², Wire Size Search: 1.5 mm², Wire Insulation Diameter: 2.2 - 2.4 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 15 | |
| Contact material | copper-iron alloy | |
| Cable cross-section | 1.5 mm² | |
| Insulation diameter | 2.2-2.4 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
